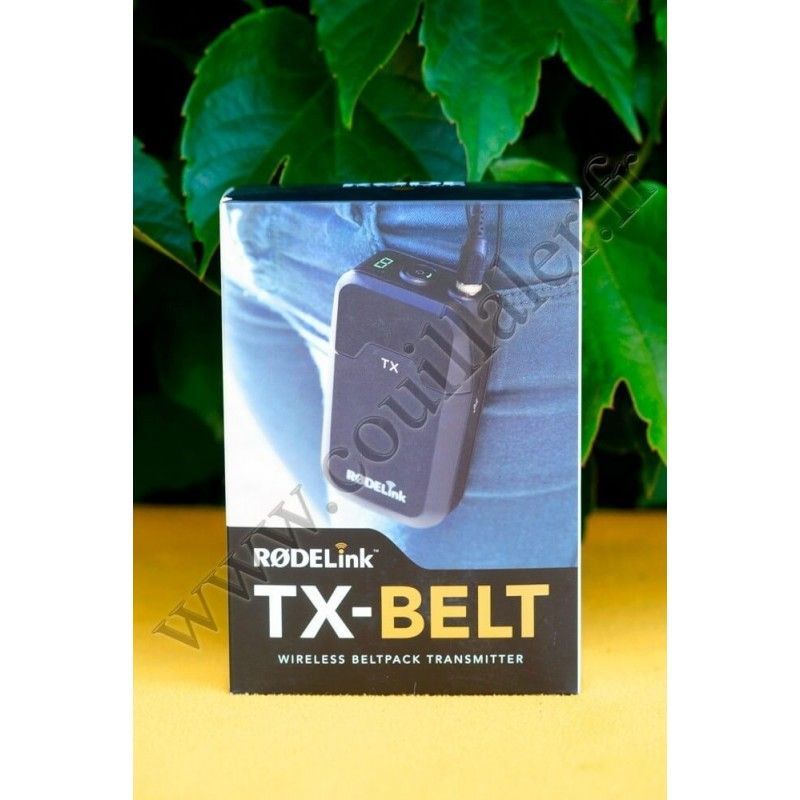

Wireless Transmitter Rode TX-BELT for Lavalier Microphone

The beltpack wireless transmitter

Røde TX-BELT

is delivered with the microphone Røde Lavalier.

The TX-BELT is in the wireless system RØDELink Røde Newsshooter Kit for handheld microphones.

It presents many interesting functions, the first of them is that you will resolve the problems caused by cables between the microphone holder and the audio recording source (camera, reflex, camcorder, digital MP3 recorder, smartphone...)!

Connected directly on the 3.5mm TRS minijack plug of the microphone, this smart small device will faslty seduce you!

This wireless transmitter can be powered by AA batteries or, to offer a more important autonomy, with a microUSB cable.

---

We can read here or there

The TX-BELT is a beltpack wireless transmitter for the RØDELink digital wireless system. Comfortable and lightweight, it can be fitted to a belt or clothing and features a locking thread to ensure the microphone connection is as secure as possible.

The Rode TX-BELT is a beltpack wireless transmitter designed to provide easy and secure transmission of wireless audio for videographers, filmmakers, and electronic news gatherers. It works with RODELink digital wireless systems and can be powered via two AA batteries or a micro-USB connection.

An internal antenna contributes to the compactness of the TX-BELT. It can be attached to a belt, strap, or clothing via the belt clip. The bottom panel slides down for access to the gain switch, which has positions for 0 dB, +10 dB, and +20 dB. Current channel selection is indicated on a large display by the dedicated power button. The 3.5mm TRS input features a locking jack socket to prevent accidental disconnection. The TX-BELT ships with a lavalier microphone and a captive TRS cable.

• Designed for use with RODELink digital wireless systems
• Belt clip allows quick attachment to a belt or clothing
• Selectable 0 dB, +10 dB, or +20 dB gain via switch beneath the slide-down bottom panel
• Large indicator for channel selection
• Input connection utilizes a 3.5mm TRS locking jack socket
• Powered via two AA batteries or micro-USB connection

---

But, what does RØDELink means exactly ?

RØDELink (http://www.rode.com/rodelink) represents the next generation of digital wireless systems. Using a Series II 2.4GHz digital transmission with 128-bit encryption, it is able to constantly monitor and hop between frequencies to maintain the strongest possible signal level at a range of up to 100 meters** (over 100 yards).

** range estimations based on optimal environment

UP TO 100 METRE RANGE**

RØDELink is so intuitive that it works straight out of the box, with no channel selection necessary. For users with multiple RØDELink devices the system offers eight discreet channels that can be set up in seconds.

Powerful & secure

Using a Series II 2.4GHz encrypted digital transmission that is sent on two channels simultaneously, RØDELink automatically selects the strongest signal and ensures your audio is as reliable and secure as a cabled connection.
