Microphone Rode NTG4+ - Røde Directional Mic - USB Battery Lithium

Nice update that this new super-cardioid

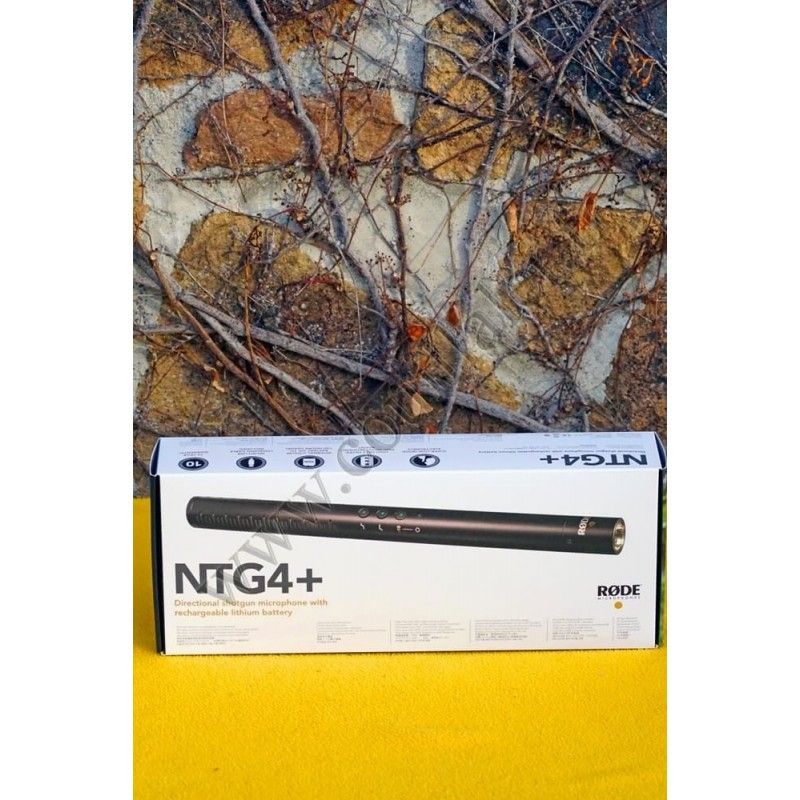

Røde NTG4+

with its new capsule Røde, its rechargeable battery with the supplied USB cable, its 150 hours of battery life, it becomes an asset on your shoots!

It can also be powered by the XLR (P48) (cable not included)
XLR cables in stock here.

---

Increase the duration of the warranty to 10 years (!) by registering your product here
https://en.rode.com/warranty/step1

10 years, this is not insignifiant! ^_^

---

We can read here or there

Building on the popularity and acceptance of the RØDE NTG2, the NTG4+ features an all-new condenser capsule with low noise, high sensitivity and the convenience of on-board equalisation/level control via digital switching.

The NTG4+ is the very first microphone to feature an in-built battery that provides 150+ hours of operation with the convenience of USB charging.

The RØDE NTG4+ is a highly directional shotgun microphone featuring a supercardioid polar pattern, and will therefore capture more audio from sound sources directly in front of the microphone (on-axis) and less of the surrounding environment (off-axis). This makes the NTG4+ a great boom microphone for dialogue on location shoots.

For best results, position your microphone as close as possible to your sound source, whilst staying out of your camera’s shot. A boom pole will assist in mic positioning on location, and always use wind protection, when shooting out- doors.

The on-board PAD switch will help reduce the microphone sensitivity when recording very loud sound sources. The High Pass Filter will reduce undesirable low frequency sounds like traffic, footsteps or air conditioning.

---

Intuitive Digital Switching

Control the in-built high-pass filter, pad and high frequency boost using convenient digital switching on the microphone body. Persistent states ensure your settings are retained when the microphone is switched off.

Internal Battery (NTG4+)

Provides 150+ hours of operation from with a charge time of only two hours. The included MicroUSB cable makes charging simple and convenient, meaning the mic can be charged via a computer, power-brick or even your car.

Super Low-Noise

The NTG4 & NTG4+ both feature an all-new condenser capsule from RØDE with low noise floor, higher sensitivity and a rich, smooth character.

• High Boost: Press the High Boost button to acti- vate the +6db high frequency boost.
• High Pass Filter: Press the High Pass Filter but- ton roll off frequencies below 75Hz.
• PAD: Press the PAD button to activate the -10dB PAD

---

• Broadcast sound quality
• Low noise circuitry
• Internal rechargeable lithium battery, supplying over 150 hours operation
• Fully charged in under two hours via MicroUSB
• Rugged metal construction
• Convenient digital switching
• High Frequency Boost
• High Pass Filter (Flat/75Hz)
• PAD (-10db)
• MicroUSB cable included
• 10 year extended warranty when you register your microphone

---

The RØDE NTG4+ can be powered via

• The internal lithium battery; OR
• P48 phantom power, to be supplied by your camera or recording device. When phantom power is applied the internal battery will not be used, or charged

---

Polar pattern

---

Frequency response

---

Specification

• Acoustic Principle : Line Gradient
• Directional Pattern : Super-Cardioid
• Frequency Range : 20Hz ~ 20,000Hz (selectable HPF @ 75Hz)
• Sensitivity : -32dB re 1V/Pa (25mV @ 94db SPL) ±2dB @ 1kHz.
• Output Impedance : 200Ω
• Equivalent Noise : 16dBA SPL (per IEC651)
• Maximum Output : 7dBu (@ 1kHz, 1% THD into 1kΩ)
• Dynamic Range : 119dB (per IEC651)
• Maximum SPL : 135dB
• Signal to Noise Ratio : 78dB SPL (per IEC651)
• Power Req. : 48V Phantom Power (4.8mA current draw) or internal rechargeable lithium battery.
• Battery Charger : MicroUSB cable (supplied)
• Output Connection : 3 pin XLR, balanced output between Pin 2 (+), Pin 3 (-) and Pin 1 (ground)
• Dimensions 22 x 278mm
• Net Weight 176g

---

Included Articles

• NTG4+ microphone
• Fixation support Røde RM5
• Foam windshield
• Røde ZP2 pouch
• Cable Micro USB for the battery
• Manual
